Solutions for Digital Signage
BCD Atlantik offers products and solutions designed for all kind of Digital Signage applications. This includes an extensive set of hardware, software and development tools as well as the capability to combine selected parts and create a complete solution. Our expertise in embedded system designs help developers and manufacturers to create the next generation of smart signage systems from i.e. passenger information displays, sophisticated wireless in- and outdoor signage systems and innovative gesture control HMI. BCD Atlantik offers an extensive set of SoCs, SoMs and a huge range of display (standard & custom) and HMI Solutions for all kind of signage applications.
TARGET APPLICATIONS:
- Indoor & Outdoor Digital Signage
- Indoor & Outdoor Passenger Information Displays
- Indoor & Outdoor Vending Machine
- Outdoor Billboards

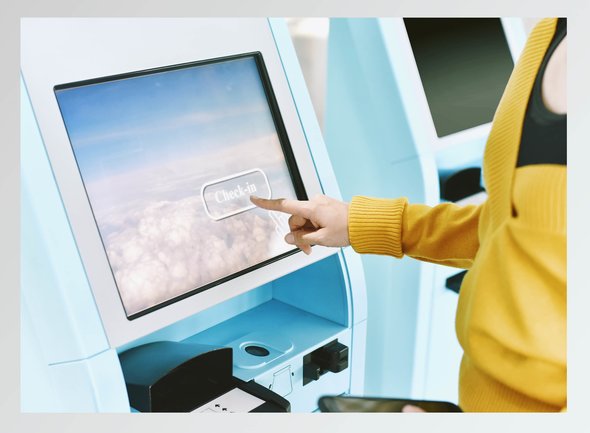

POS open frame operation control unit for in- and outdoor use
Partial or complete solution according to customer requirements
Reference design
- Display with touch i.e. 5inch, 7inch and 10.1inch (broad range available)
- Custom cover glass design (tapered glass, coatings AR, AG, Anti-bacterial glass etc.)
- Custom backlight design (i.e. outdoor high brightness)
Integration level:
- Display with touch (incl. calibration to cope with splash water)
- Display with touch - open frame design
- Semi-/ complete solution including:
- Housing
- Coverglass design, painting
- Service based on our system on module
- OS & software integration (i.e. Linux, Android, Windows, RTOS)

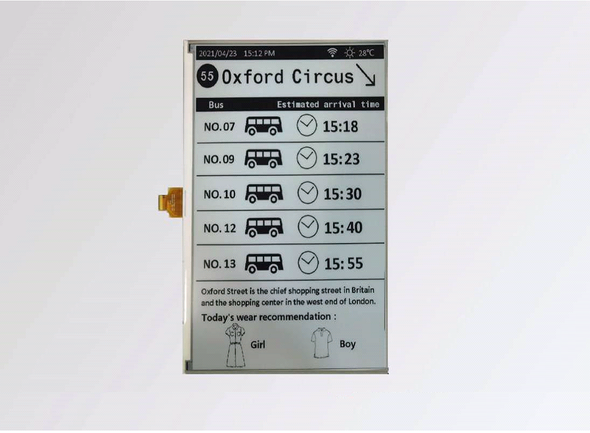

E-paper Display 11.6"
e.g. for passenger information display (EPD)
Key Features
E-Paper Display 11.6" for Passenger Information Displays (EPD) Demo kit
- Size: 11.6"
- EPD: Black & White
- Content: Display sample (E-Paper/ EPD)
- Control board
- Power supply: 5V DC
- Operating system: Windows PC (for changing image content)
- Interface: SPI interface to EPD display (no flash memory required)
- User can upload up to 3 images via PC (PC, Programmer-Device, ST-LINK/ V2, Platform KEIL RVMDK)

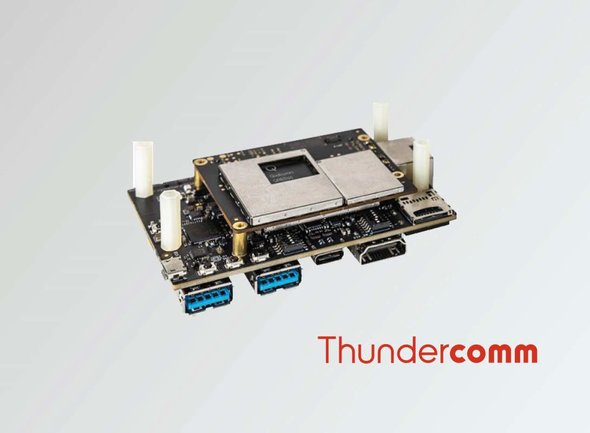

TURBOX™ C865 / C2130 DEVELOPMENT KIT
FROM MANUFACTURER THUNDERCOMM
Key Features
- Turbox™ C865 Development Kit provides a feature-rich Android development platform that is designed to provide an ideal starting point for IoT products require high computing power, 5G connection, advanced camera capability, and superior graphics performance.
- Qualcomm® Snapdragon™ SM8250 processor
- Qualcomm® Adreno™ 650 GPU, Adreno 665 VPU, Adreno™ 995 DPU
- Qualcomm® Hexagon™ DSP with quad HVX
- Qualcomm® Spectra™ 480 image processing
- Compliants with the 96Boards open hardware specification
- Supports Android 10

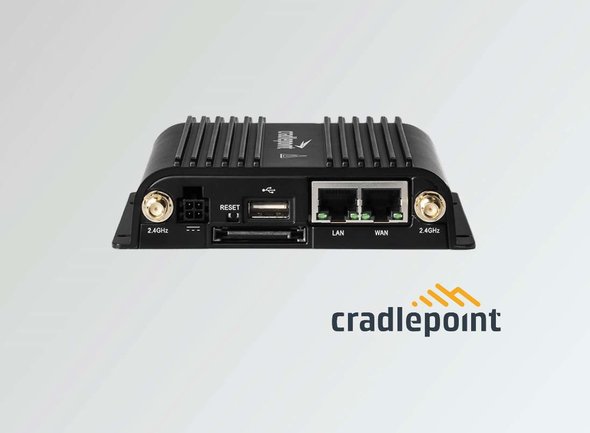

IBR600C 4G LTE ROUTER
CRADLEPOINT - TB3-600C150M-EM - IBR600C LTE WITH WIFI INCL. 3 YEARS NETCLOUD PLAN INCL. ACCESSORIES
Key Features
- Embedded Category 4 LTE modem
- Dual-SIM with Auto-Carrier Switching
- Dedicated and portable connectivity for remote workforce
- Semi-ruggedized for industrial applications
- Extend the service with NetCloud SDK and API
- Dual-modem support with COR Extensibility Dock
- Passive GPS
S.CUBE HIGH RES TOF 3D DEPTH CAMERA (ASIC MP TYPE )
e.g. for applications with gesture control
Key Features
- 3D ToF depth camera
- True VGA resolution
- High accuracy
- Compact design (60mm x 15mm x 10mm)
- 0.2- 4.0m detection range
- Interfaces: USB 3.0 connector board + MIPI (S.CUBE ToF module)
- Operating system: Windows, Linux (Android on request)
- Including powerful software package (SDK)
48.5" inch Stretched Display 1920 x 360 IPS
Ultra-wide Stretched Displays
Key Features
- Size: 48.5" (stretched)
- Resolution: 1920 x 360
- Brightness(es): 1000 / 2000cd/m2
- Contrast: 4000:1
- Technology: IPS / Full Viewing Angle
- Interface: LVDS
- Operating Temperature Range: 0-50°C
- Operating time: 24/7h
