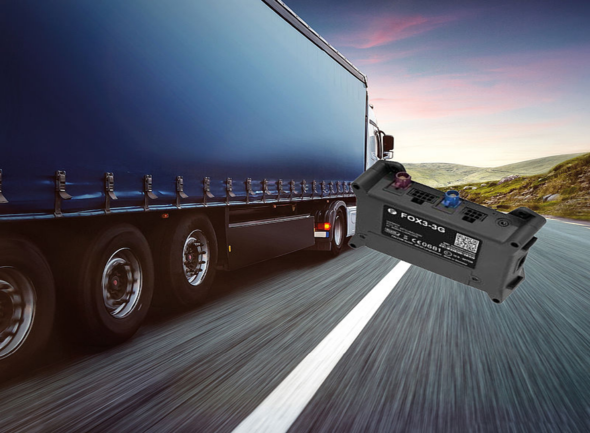

All-in-One Cellular Telematics Device

19. November 2020 | Planegg

FOX3 is designed to operate with internal or external antennas. Built-in internal antennas are automatically turned off while external antennas are in use. This device will dramatically simplify your logistics as well as the installation process and the post-installation support.



Cellular Telematics Device
  • Route management
  • Manage driver hours
  • SOS alerts using digital input
  • Driver identification with RFID
  • Fully Customisable
  • Trigger / count
  • Speed reporting
  • Hardware expendable
  • Black-box features
  • MEMS interface
  • Speed reporting
  • Hardware expendable

Newly developed Premium-Features show the way to the future of mobile data logging, storing, processing and sending. FOX3 is a configurable smart tracking/data logging device which can be fully adapted to user requirements. FOX3 offers new features like:  data Encryption, several History Modes, Eco-Drive/Behaviour, Data Logging, GSM/GPS jamming detection beside standard items like status reports, alerts messaging, audio call, spy calls or geofencing. There are three models of the FOX3 available: FOX3-2G, FOX3-3G and FOX3-4G. All models are expandable via IOBOX-MINI, IOBOX-CAN and IOBOX-WLAN.

Interfaces & communication

The FOX3 offers extensive wired interface such as: USB 2.0, RS-232, RS-485, CAN, OBDII, configurable I/O’s; and wireless communication channels:  SMS, TCP, UDP, HTTP, Email TCP client; easily adapting to your application requirements.

Built-in antennas

The built-in internal antennas are automatically turned on if the external antennas are tampered with. The FOX3 will dramatically simplify your logistics as well as the installation process and the post-installation support.

Alerts and reports

The FOX3 provides you periodical speed reports, multiple overspeed alert / threshold, multiple overspeed duration / counter, combination of speed data with coordinates, date, time, heading and other parameters. These statistics on the driving behaviour allow you to make decisions and increase safety, reducing maintenance and fuel consumption.


The FOX3 enables up to 3,000 geo-Fences (circular/rectangular), 32 areas (selective, combination) and 1 parking area (circular). User can set up alerts and notification when entering/exiting geo-fences. It enhances protection against theft and optimizes monitoring of your fleet.


Eco-drive is GNSS-based  feature with a sophisticated algorithm developed by Falcom. Eco-drive will provide to the fleet administrator information on fuel consumption (l/100km), CO2 emission (g/km), driving behavior (harsh brake/acceleration/turn), overspeed and generates a scorecard for vehicle drivers. Using FOX3 Eco-drive feature results in better driver education hence less risk of accidents, as well as reducing fuel consumption hence saving money.

Power management

The FOX3 has multi configurable power-saving and sleep modes and even a battery smart charge & monitoring feature (temperature, state, voltage). Using the “Doze mode” (CPU and GNSS hibernate; GSM on), the “auto mode” (GSM, GNSS, CPU stand-by depending on load)  will result in reduced power consumption, preventing the vehicle battery to drain and extended operating time.

Remote management

FOX3 offers multiple remote management and DOTA options. With D2Sphere device management services fleet administrator can check device firmware integrity, manage available firmware version and generate delta firmware update in a matter of second. Secure DOTA with AES128 encryption, as well as automatic delta retry in case of power or network interruption allows maximum security for fleet operator.
