TELINK BLE + IEEE802.15.4 MULTI STANDARD WIRELESS SOCS

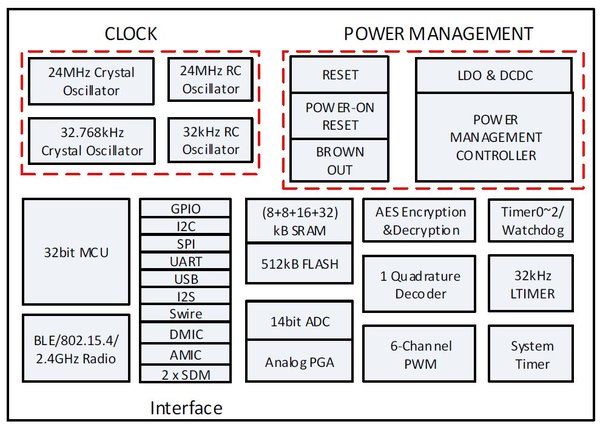

It supports BLE 5.0 with 2X data rate, 4X long range (LR), 8X advertising packet extension (AE), up to 8 antennas for Indoor Positioning, both Telink proprietary and SIG BLE Mesh, Zigbee, RF4CE, HomeKit, Thread, ANT and 2.4GHz proprietary. It provides 32-bit MCU, BLE/802.15.4 2.4GHz Radio, 64KB SRAM, 512KB Flash, 14bit ADC with PGA, AMIC, DMIC, stereo audio output, 6-channel PWM, one quadrature decoder (QDEC), and flexible GPIO interfaces, and other peripheral blocks required for IoT applications.

The TLSR8x5x family also includes multi-stage power management design allowing ultra low power operation and making it the ideal candidate for wearable and power constraint applications. All optional features of BT 5.0, ZigBee 3.0 certification, Thread v1.1 and HomeKit authentication are already embedded with no additional external devices required.

The new 825x family is a world beater in the LP RF Connectivity.

Features:

Standards Supported

• BLE 5.0 (Long range, 2Mbps, AE), BT5.1 compatible (angled based positioning with up to 8x antennas)
• BLE Mesh, 6LoWPAN/Thread, 802.15.4 , Zigbee 3.0, RF4CE, HomeKit
• ANT/ANT+

Interfaces

• I/O: SPI, USB 2.0, I2C, UART, I2S
• Up to 32 GPIOs
• Voice In: Digital and Analog Mic, Dual-Mic
• Audio Out: SDM (Mono), Stereo
• PWM: Up to 6-channel

Performance

• RF Sensitivity

       Up to -97dBm @ BLE 1Mbps;

       Up to -100dBm @ 802.15.4

• Power @ 3V

       TX whole chip 4.8mA @0dBm, 17mA@10dBm

       RX whole chip 5.3mA

       Sleep with SRAM:  ~1uA

       Sleep with external wakeup: 0.4uA

       Max RF power: 10dBm

• 32bit MCU, up to 48MHz

       512KB Flash with Flash encryption

       64K SRAM (8K + 8K + 16K Retention)

       Unique Chip ID

• BOM saving

       32k crystal optional

       Embedded RF match circuit

       Minimal external components

• Power

       Embedded LDO, DC-DC

       ADC for battery monitoring

      1.9 ~ 3.6V

• Sensor support

       14bit ADC with PGA

       Temperature sensor

       IR modulators with FIFO control

       Quadrature decoder

       Low power comparator

SIM Card

• Native 7816 interface support

Package

Applications:

• QFN32, QFN48
• Smartphone and tablet accessories
• Wearable devices
• Building automation
• Consumer electronics
• RF remote control
• Wireless toys
• Smart grid
• Industrial control
• Sports and fitness tracking
• Smart lighting, smart home devices
• Intelligent logistics, transportation, city
• Health care
