5G Antennas

Under the Atlantik 5G Haus brand, BCD Atlantik bundles its own competencies with those of its partners, with the aim of supporting customers in making 5G a reality, for example. For this purpose, the complex topic of 5G is countered by many years of experience in the design of wireless embedded systems. More and more countries are making 5G infrastructure fully available. To use 5G in the Internet of Things requires 5G-enabled devices together with an effective 5G antenna.

Atlantik offers a wide range of 5G-enabled antenna products for this purpose, from internal and external 5G antennas, customized cables and connectors, to fully customized solutions.

In addition, BCD Atlantik has developed a 5G reference antenna: our ultra-wideband ATXX All-in-One 5G reference antenna features optimized matching for all 5G bands and frequencies from 600 MHz to 6 GHz with matching reflection attenuation of at least S11 = -10dB (VSWR = 2)!

It can cover all 5G frequencies including 3G/4G frequencies and additionally for IoT, GPS/GNSS, Bluetooth, Wi-Fi and 5.9 GHz V2X applications with our 5G antenna. Therefore, our 5G reference antenna is especially suitable for applications to 5G demo systems and reference setups as well as for tests of multi-antenna methods, "Massive MIMO" (Multiple Input, Multiple Output).

Our experts for 5G antennas will be happy to advise you on the best 5G antenna for your application.

5G Modules

Our high-performance or low power modules for 5G eMBB or mMTC (LPWAN) cellular connectivity are available in M.2 or LGA form factor.

They are based on Qualcomm's Snapdragon X55 5G modem-RF system for mmWave & sub-6GHz, or LPWAN chipsets like the new MDM9205 for NB-IoT only, CAT-M1 only, NB-IoT + CAT-M1 combo, and NB-IoT + CAT-M1 + 2G fallback combo solutions. The integrated GNSS receiver supports GPS/GLONASS/BeiDou/Galileo/QZSS.

Raspberry Pi Shield Hat for LTE and 5G

Together with the Quectel modules for 5G and LTE, your application becomes available worldwide in seconds thanks to the _atxx Shield HAT.

Control and data transfer at high speed are immediately guaranteed. The M.2 module interface as well as the USB 3.0 connection ensure this. With the Raspberry Pi you also have a versatile Linux platform for testing and developing programs and applications. Wi-Fi and Bluetooth are also at your disposal.

5G Single Board Computer

We provice a set of single board computer that either directly include cellular connectivity (for LPWAN) or provide a M.2 interface to be combined with our 5G eMBB modules.

The range from high performance, like the Qualcomm RB5 robotics platform, to low power SBCs that we can easily customize for all kind of tracking devices. Designed for industrial conditions – high temperature range, long lifetime and industrial communication protocols.

5G Development Kits for EMBB

Atlantik provides a huge set of development boards to accelerate 5G development for various use cases.

They are available for both sub-6Ghz and mmWave 5G connectivity with different antenna options and interfaces to host processors over GbE, USB, PCIe or M.2. Application specific development boards include 5G-to-Wi-Fi6 (using QCA6391 2x2 ax SoC) and access point / router (using IPQ8074A Quad-Core as host with 10GbE interface) variants.

5G Reference Designs

Our 5G reference designs helps our customers reduce development costs and significantly shorten time to market. They can be modified according to specific needs and use cases.

Examples are a design for 5G to Wi-Fi 6 Mobile Hotspots, 5G customer premise equipment and a new product style - A 5G CPE integrated smart speaker that can be linked with other mesh speakers. A LPWAN example is Low Power AI Solution with always on computer vision sensor.

5G Embedded Processing Solutions

Atlantik Elektronik provides a huge set of processors, system on chips, system on modules and single board computers ranging from ARM Cortex M0 MCUs up to Octa-Core ARM Cortex-A76 or Intel X86 based processors that can be used as a host in 5G applications.

This includes latest Snapdragon technology for AI and edge computing as well as router & access point CPUs/ SoMs with complete CPE/ router software SDK, development and debugging tools.

5G Development Kits for MMTC (LPWAN)

Our LPWAN development boards provide Cat M1/Cat NB2, E-GPRS connectivity with GNSS function.

Integrated ARM Cortex A7 application processor & MCUs (QCA4020 Wi-Fi & BT & MCU) can be used to run custom applications. Available interfaces include: RS232, USB 2.0 Expansion Connectors, (SPI, Uart, I2S, PWM), 3.7V Battery Connector and they also include a 2.9 Inch E-Papers and on board sensors: 6-Axis: Acc & Gyro, Ambient & Proximity, Temperature & Humidity, Pressure

5G Cellular Router and edge computer

Our 5G adapters provide industry-leading Wireless WAN connectivity Designed for branches that require the flexibility of wireless and the performance of 5G, a new era of wide-area networking.

They use 4G up to CAT 20 fallback, Wi-Fi 6 and 2.5GbE LAN connectivity, as well as the ports, interfaces, and software to make it optimized for 5G. We also provide the right antenna and SW/ remote management tools for our 5G router portfolio.

5G Products by ATXX

Our 5G finished products are ready to test, use and deploy.

They range from Snapdragon based 5G/ Wi-Fi 6 Edge Computer running Linux and Android for AI and video applications, an AI kit enabling the most powerful on-device AI vision for edge devices or Cellular modems and telematic gateways for tracking and communication. For these devices we provide tools for SW development, an algorithm SDK, development guides and demo code.

5G Bundling Components

We provide the right components for your 5G design.

Displays with touch panels, custom cover glass and mechanical design. RGB Cameras and Time of Flight. Embedded memories on IC and module level Sensors like temperature sensors, gas sensors (CO, CO2, Nox,..), magnetic sensors, infrared sensors.

We offer the right 5G antennas for your application, whether standard, customized or fully customized.

Our popular 5G antennas

Overview

5G Reference Antenna - DY-2011140 by ATXX

Semi or complete solution according to customer requirements

5G Antenna 4x4 MiMo - DY-2011145 by ATXX

Semi or complete solution according to customer requirements

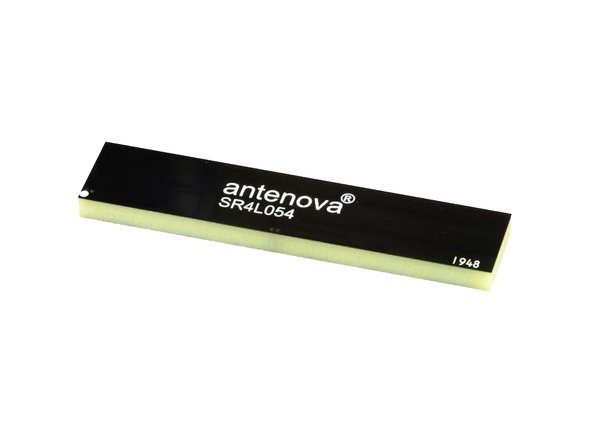

5G Embedded Antenna Lepida - SR4L054 by Antenova

Best Performance
