Raspberry Pi Compute Module 5
A Raspberry Pi for deeply embedded applications

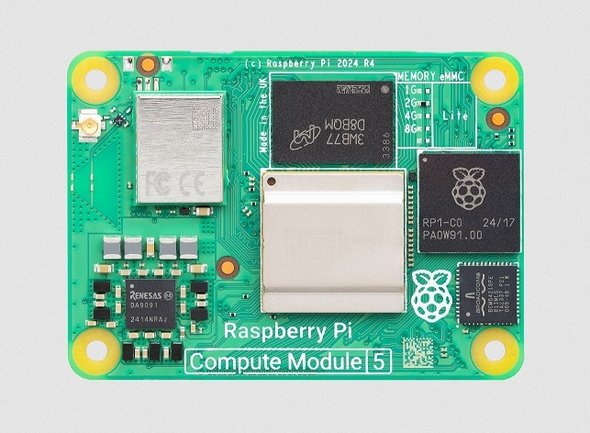

The Raspberry Pi Compute Module 5 (CM5) is the latest system-on-module (SoM) from Raspberry Pi, designed to bring the power of the Raspberry Pi 5 to embedded applications. Built for flexibility and customisation, it’s ideal for advanced projects, industrial applications, and IoT solutions.
The CM5 is ideal for embedded systems, robotics, networking equipment, and compact servers. With its expanded power, storage, and connectivity, it also excels in use cases like media playback and industrial automation.
Overall, the CM5 marks a major upgrade, combining versatility, performance, and improved connectivity for modern development projects.
Key features
Powerful performance
The CM5 features a quad-core Arm Cortex-A76 processor (up to 2.4 GHz) and a VideoCore VII GPU, delivering significant performance improvements over the previous CM4 models.
This makes it capable of handling demanding tasks like dual 4K video output and H.265 decoding
Configurable RAM and Storage
With 32 module variants available, choose the option that's right for your application:
- Available with a choice of 2GB, 4GB, 8GB or 16GB RAM.

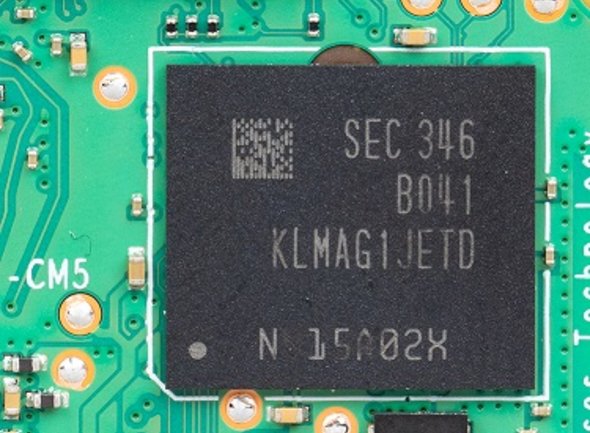

- Storage options include 16GB, 32GB or 64GB eMMC flash memory, or 'Lite' variants without built-in storage, for custom designs and cost-sensitive applications.
Enhanced connectivity
- Supports dual 2.5Gbps Ethernet for faster networking
- Optional onboard Wi-Fi 6 and Bluetooth 5.0, offering improved wireless performance
- Additional PCIe Gen 3 lanes enable NVMe SSDs or other peripherals
IO Flexibility
CM5 provides access to multiple I/O interfaces, such as:
- USB 3.0 ports
- Dual HDMI outputs (4K@60Hz)
- Dedicated camera and display ports, enabling advanced multimedia capabilities
Complete Development Kit

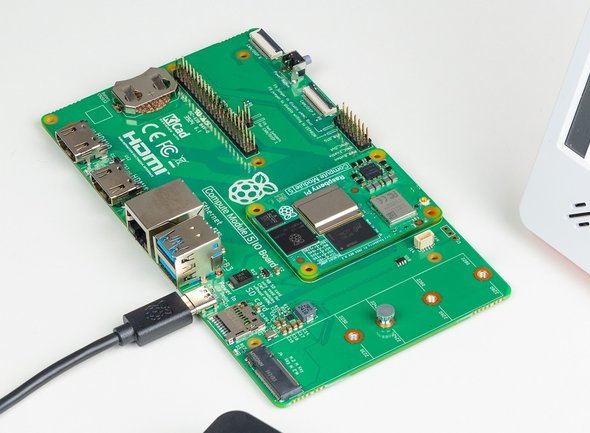

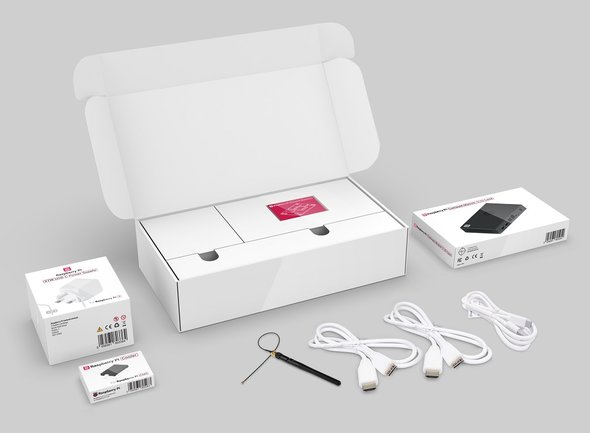

To help you get started with CM5, Raspberry Pi have created a comprehensive development kit, containing everything you need - module, IO board, power supply, antenna, cables and more.
