Windows on Snapdragon
Looking for a new way to run your Windows applications?

Windows on Snapdragon

We present you the latest Snapdragon on Windows possibilities

BCD Atlantik helps to create powerful, innovative, stylish devices and experiences for Windows systems running on ARM & Qualcomm Snapdragon. This includes an extensive set of hardware, software, and development tools as well as the capability to combine selected parts and create a complete solution. Designed to deliver advancements in size, power, sensor integration, connectivity, battery life, and performance, our wearable platforms enable the next generation of Windows devices.

As a partner of leading global technology companies, BCD Atlantik is able to cater to individual customer requests ranging from standard component supply to partially or completely outsourced planning, realization, and production of an ODM product. Our specialists are highly experienced in combining and integrating products to produce the best possible solutions based on customer specifications.

Recommended products

Snapdragon with Windows support

The value chain can be divided into three integration levels, first "components and modules", which is equivalent to standard distribution, secondly "customer-specific partial solutions" and third complete "ODM products and solutions". BCD Atlantik customers can choose to either task our team of experts with technical consultation and support while developing a product themselves or, if preferred, outsource any task of the product development process including complete handling of development, approval, and production to BCD Atlantik.

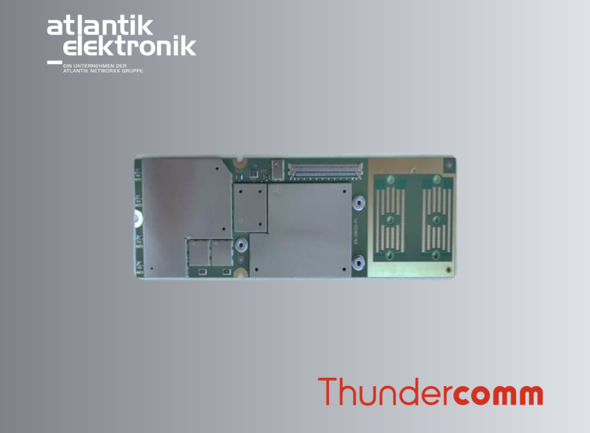

CT7280 Module

Windows 11 Support

Key Features:

  • High-tier 5G SoC processor with integrated LTE/5G modem
  • Always On, Always Connected
  • Superior PC experience brings innovation & invention
SoCQualcomm® Snapdragon c7+ Gen3
Kryo CPU 4x Gold @ 2.4GHz 4x Silver @ 1.8GHz
OSSupports Windows 11
RAM8 GB LPDDR5
Storage256 GB UFS3.1
DisplayFHD+, eDP1.4
ConnectivitySub-6 GHz 5G NR + Cat18 LTE
DC-HSPA+, CDMA, WCDMA, and GSM
WLANWi-Fi 6/IEEE802.11ax/ac/a/b/g/n, Bluetooth®v5.0
Camera27+27+27/64MP
AudioSupported
Peripheralsx1 USB3.1 Gen1
x1 USB2.0
CertificationCE*/FCC*/RED*/TELEC*/NCC*/Anatel*/BIS*/IC*/RCM* including selected carrier certifications

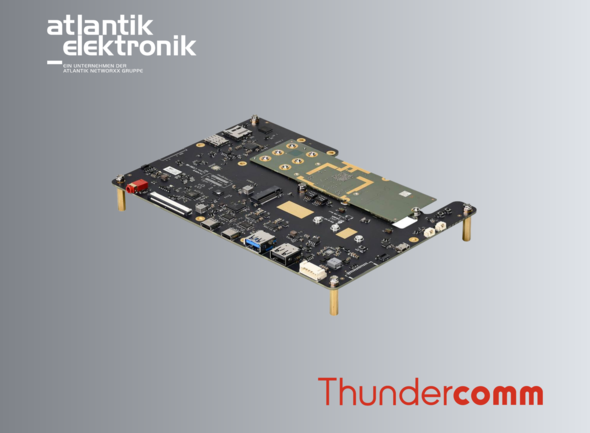

CT7280 Development Kit

Windows 11 Support

Snapdragon computing platforms power Windows on Snapdragon® devices - Always On, Always Connected PC, tablets and IoT devices designed for productivity, efficiency and connectivity.


Category    SC7280 Development Kit
PlatformQualcomm SC7280
Camera InterfacesSpectra ISP 3 x 22MP 5 x CSI
Display InterfacesPrimary: FHD+ @ 144 DSI or eDP1.4
External:4K @ 60 DSC v1.2DP over USB3
Audio Interfaces3× DMICS
1× Headset
1× I2S
Keypad InterfacesIT8987
USB Interfaces1x USB3.1 Gen 1
1x USB2.0
PCIe Interfaces2xPCIe Gen3 (3 lanes)
WLAN/BT InterfacesWLAN 2×2
Connectivity5G Sub6G+LTE(Option)
Power InterfacesDP Over TypeC
Other Interfaces1× I2C
1× SPI
1× UART
1× JTAG
Dimensions200 mm×135 mm
OS SupportWindows 11
 Windows 11 IOT

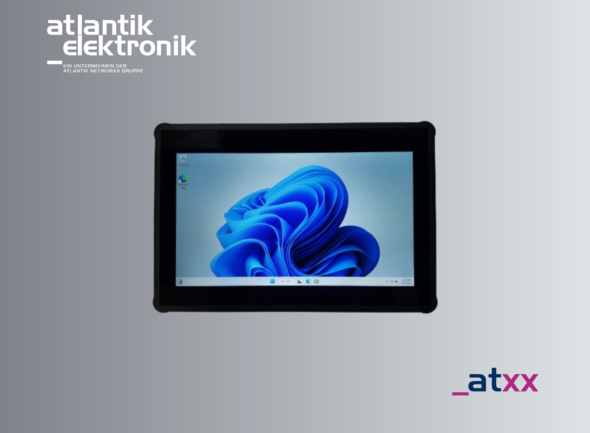

Industrial Tablet

Reference Design

This industrial tablet is designed for rugged use - withstanding shock, vibration and extreme temperatures. Both Android and Windows operating systems can be offered, as well as various storage options.

Specifications:

  • Size: 13.3"
  • Protection class: IP65
  • Display resolution: 1920 x 1080 (FHD)
  • Brightness 260cd/m² (800cd/m² option)
  • Technology: IPS (all viewing angle)
  • Touch: PCAP touch, 10points
  • Surface hardness: ≥6H
  • Light transmittance: ≥85%
  • Camera: 5M pixel Autofocus
  • Connectivity: WiFi, Bluetooth, USB, Micro HDMI in-/ output
  • Loudspeaker: 3020 waterproofing, 8Ω 2W
  • Outer Dimension: 351 (H) x 236(V) x 28.7 (H) mm
  • Operating system: Android, Windows
  • Interfaces: USB type-C*2/ headset port /micro SD/micro SIM.
  • Storage: Various / selectable
  • Input voltage: DC12V/ 2A
  • Vibration resistant: 50-500Hz, 1.5G, 0.15mm (peak-to-peak value)
  • Shock resistant: 10G (11ms)

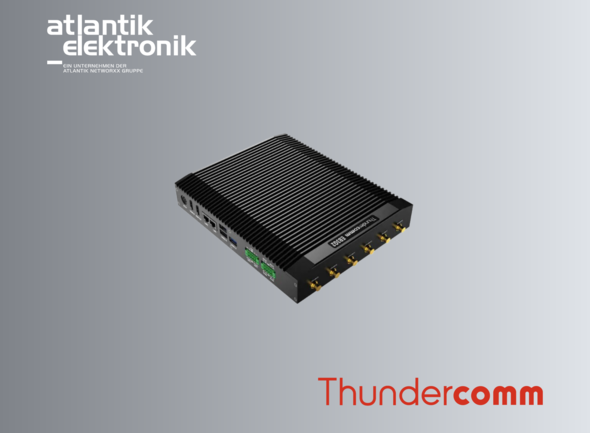

EB3 Gen2

Edge AI Station

EB3Gen2 Edge AI Station is a high-performance AI edge computing device. It adopts an industrial-grade fanless design. Embedded with the built-in edge software OSware. Edge, it provides customers with device management, video management, AI algorithm configuration, application upgrades, edge-cloud collaboration, customization, and multi-cloud connectivity.


  • Premium performance with high AI computing power and multiple channel decoding
  • Rich interfaces, multiple type of network for Edge computing scenarios
  • Industrial design for harsh conditions
  • Deeply optimized streaming media AI analysis service
  • Visual configuration of AI algorithms and applications
  • Edge cloud collaboration, large-scale deployment, one-stop management


Why we are the right Snapdragon partner for you?

BCD Atlantik is a leading marketer of technology and an expert in design-in of innovative semiconductor components and solutions. As a provider of technology solutions, the company offers a range of services and products that deliver benefits to customers along their entire value chain. In addition to standard distribution services, we design technical concepts, plan projects, develop bespoke hardware/software, and implement individual logistic models. BCD Atlantik is partnered with Atlantik Elektronik, who is an international operator with branches in Germany, Austria, the Netherlands, and Denmark. Atlantik Elektronik GmbH is part of Atlantik Networxx AG.
