  • 4-pair PoE ICMs (RJ45 connector MagJack)

RJ45 connector - ETHERNET-5G-BASE-T- MAGJACK™ ICMS

03. April 2020 | Planegg

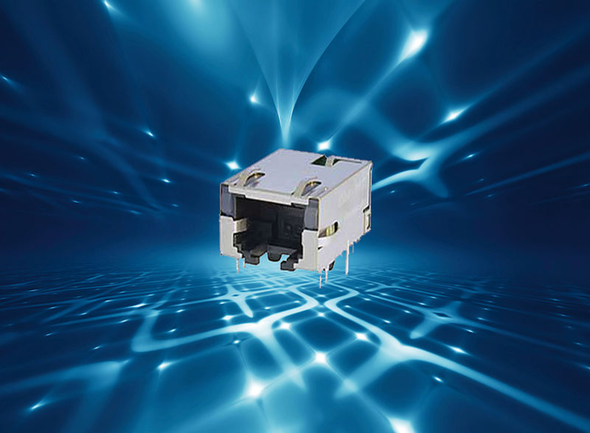

4-pair PoE ICMs allowing to upgrade product performance for optimal power and speed. The new RJ45 connector with ethernet-5G base-T-Magjack™ ICMs from Bel Stewart, the world class manufacturer of high-speed connectors.

5G

Features:

  • The RJ45 connector meets all IEEE 802.3 10/100Base-T thru 5G Base-T electrical requirements including RL, IL, Hi-pot and Common Mode parameters
  • Can carry 720mA or 1000mA of current at 57VDC continuous.
  • RJ45 connector operates from -40°C to +85°C.
  • 100% hi-pot tested in production
  • Comes with many different LED color combinations and options
  • RoHS 6/6 compliant
  • UL recognized
  • 50 micro-inches of gold plated contacts as required by the TIA 1096/FCC 47, Part 68.
  • RJ45 plug-tab up for ease of use
  • Lead-free wave-solder compatible
  • EMI-spring tabs on the shield for enhanced EMI and ESD performance

The RJ45 connector from Bel Magnetic Solutions are designed for today's PoE products that demand amplified power transmission and faster data speeds, making them well-suited for 5G cellular applications.

These 4-pair Power over Ethernet (PoE) MagJack® integrated connector modules (ICMs) are designed to 5G Base-T ICMs enhance maximum performance and improve speed.

Bel Magnetic Solutions Single Port 5G Base-T MagJack™ ICMs offer power of both 60W and 100W with 720mA or 1000mA of current at 57VDC continuous. These ICMs feature a 5GBase-T capable design that is compatible with all known 5GBase-T current-mode and voltage-mode PHYs. The industry standard footprint and pinout makes these ICMs a drop-in replacement for 1G products, no PCB changes needed.

Bel Magnetic Solutions Single Port 5G Base-T MagJack™ ICMs are ideal for base stations, high bandwidth wireless access points, and high powered devices like ethernet cameras that require more than 30W of power.

These ICMs are compatible with all major 5G Base-T PHYs, including the latest current-mode and voltage-mode PHYs and are backward compatible to slower speeds and lower powers as needed. Industry standard footprints and pin-outs allow drop-in replacements for 1G products, with no PCB changes needed.

First samples of the RJ45 5G Base-T ICMs are available at Atlantik Elektronik. Based on experiences in embedded technologies, Atlantik Elektronik is the ideal partner for your connector based applications.
