TAKE THE NEXT GENERATION 5G!
21. February 2020 | Planegg

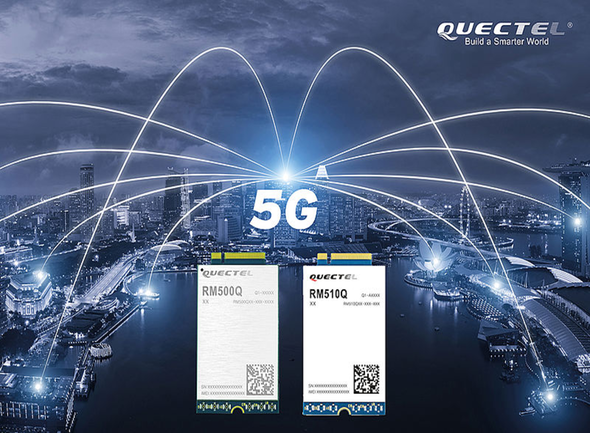

Atlantik Elektronik presents Quectel´s first 5G modules. The RM500Q is a Qualcomm Snapdragon X55 based 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel. 15 LTE technology, it supports both 5G NSA and SA modes.
Key Benefits:
- 5G/4G/3G Multi-mode module with M.2 form factor, optimized for IoT and eMBB applications
- Worldwide 5G and LTE-A coverage
- Both NSA and SA modes
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
- Feature refinements: DFOTA and VoLTE (optional)
The module supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB/PCIe drivers for Windows 7, Windows 8/8.1, Windows 10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Designed in an M.2 form factor, RM500Q is compatible with Quectel LTE-A Cat 6 module EM06, Cat12 module EM12 and Cat 20 module EM20, which will facilitate customers to migrate from LTE-A to 5G.
The RM510Q is industry’s first 5G data call over its 5G millimeter wave (mmWave) module that fully complies with 3GPP Release 15 5G NR standards.
The RM510Q is the first industrial 5G mmWave module that fully complies with the 3GPP Release 15 5G NR standards. Quectel´s RM510Q module is specifically designed for IoT and eMBB applications. It is based on a Snapdragon 855 processor combined with the X55 5G modem and supports mmWave and Sub-6GHz frequencies in both 5G standalone (SA) and non-standalone (NSA) operation. For operation in LTE networks, a maximum of 2.5 GBit per second in the downstream (Cat 22) is promised; an upstream value has not been mentioned yet.
The M.2 module covers nearly all the mainstream carriers worldwide. Designed backward compatible with LTE-A and 3G networks, RM510Q integrates multi-constellation GNSS receiver, eSIM, as well as high-speed interfaces such as USB 3.1 and PCIe 3.0, which make it suitable for globally deployed mobile devices including Always Connected PCs (ACPC), industrial PDAs, mobile gateways and more.
“The shift from LTE to the 5G network is an irreversible trend that is emerging, as 5G is the response to the ever-increasing volume of traffic. In view of the global effort, 5G also has the absolute potential to play a very important role in the IoT ecosystem. The 5G standard ensures all the necessary future requirements in terms of data speed, network capacity, and response time and data security. The presentation of the new 5G modules once again demonstrates Quectel's leadership in 5G R&D capacity and IoT innovation,” said Ottmar Flach, General Manager Atlantik Elektronik GmbH.
Would you like to know more? Contact us at: 5G-Haus@atxx.de.
