Authorised Silex Technology Distributor

Transform your products into secure, reliable wireless devices that deliver a completely connected, always-on experience.

Silex_Logo

Silex Technology delivers the best customer experience by innovating and delivering “Absolutely Must Connect” Wireless Network & Intelligent Edge solutions for medical and industrial customers.

Founded in 1973, Silex Technology is a global leader in providing highly reliable and secure wireless connectivity products through its field-proven embedded expertise and unrivaled customer support capabilities. Silex Technology offers a single-vendor solution from design through manufacturing as well as flexible customisation services, helping device manufacturers and system providers achieve an always-on experience in the most demanding environments.

BCD Atlantik is an authorised distributor of Silex products.

Hot Products

Overview

We offer an extensive range of Silex Wi-Fi 6 / 6E / 7 & Dragonwing products, a few of which are highlighted below. If you'd like to find out more about what's available and how Silex products can work for you, please get in touch with us.

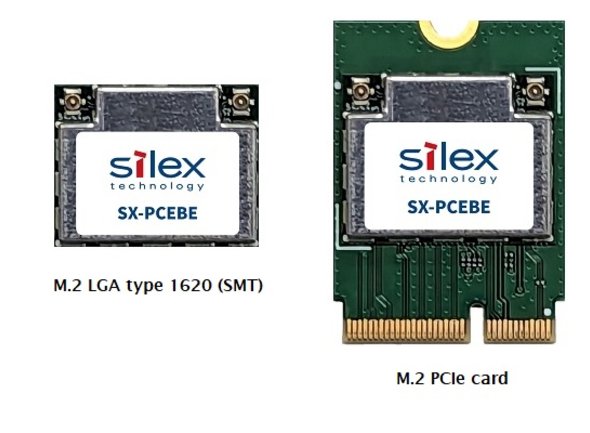

Silex - SX-PCEBE

Wi-Fi 7 + Bluetooth 5.3 Combo Module

Key Features

  • Chipset: Qualcomm QCC2076
  • Tri-Band Wi-Fi 7 (802.11be): Supports 2x2 MIMO across 2.4GHz, 5GHz, and 6GHz bands.
  • Bluetooth 5.3: Includes Bluetooth Low Energy (BLE) and BLE long-range support.
  • Form Factors: Available in M.2 LGA Type 1620 (SMT) and M.2 2230-S3-A-E (plug-in) formats
  • Interfaces: Utilizes PCIe 3.0 for Wi-Fi and UART or USB for Bluetooth connections.
  • Antenna Connectivity: Equipped with two MHF4 connectors for external antennas.

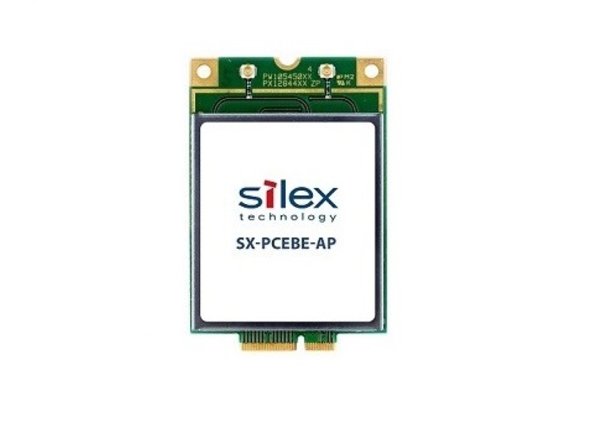

Silex - SX-PCEBE-AP

Wi-Fi 7 Access Point Module, IEEE 802.11a/b/g/n/ac/ax/be

Key Features

  • Chipset: Qualcomm QCN9274-1
  • Dual-Band Wi-Fi 7 (802.11be): Supports 2x2 MIMO on both 2.4GHz and 5GHz bands.
  • High Output Power: Designed with high Tx power to extend radio wave reach
  • Form Factor: Comes in a custom PCIe height and M.2 card
  • Interfaces: Utilizes PCIe 3.0 for WLAN connectivity.
  • Antenna Connectivity: Features two MHF1 connectors for external antennas.

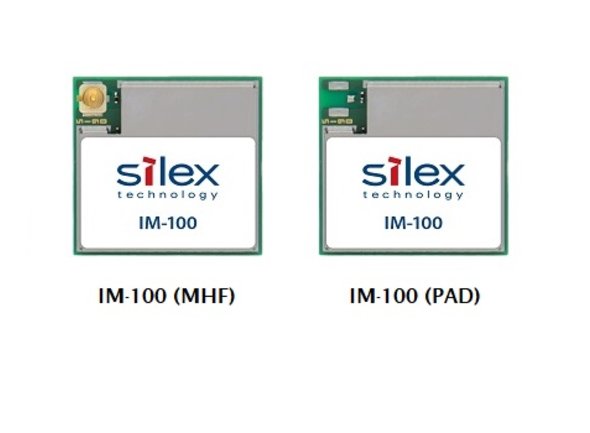

Silex - IM-100

Wi-Fi 6 + Bluetooth Stand-alone System on Module

Key Features

  • Supports dual-band Wi-Fi 6 (802.11a/b/g/n/ac/ax) and Bluetooth LE 5.4
  • Equipped with 1.2 MB of on-chip RAM and expandable memory options
  • Offers Remote Network Driver Interface Specification (RNDIS) over USB
  • Features comprehensive security protocols, including WPA/WPA2/WPA3, TLS encryption, and support for enterprise authentication methods like EAP-TLS, EAP-TTLS, PEAP, and EAP-FAST
  • Provides multiple interface options, including 100Base LAN, USB 2.0, UART, with optional SPI and SDIO
  • Available in two variants: IM-100(MHF) with a U.FL connector for external antennas, and IM-100(PAD) with a PCB antenna trace for custom antenna designs

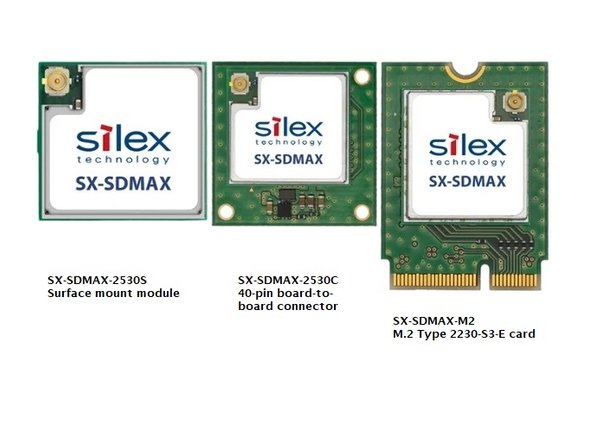

Silex SX-SDMAX

Dual-band Wi-Fi 6 + Bluetooth combo SDIO module powered by NXP

Key Features

  • Chipset: NXP IW611
  • Wi-Fi 6 (802.11ax): Supports 2.4 GHz and 5 GHz bands with a single-stream (1x1) configuration, delivering PHY data rates up to 600 Mbps.
  • Bluetooth 5.3: Includes BR/EDR and LE support
  • Interfaces: Wi-Fi via SDIO 3.0, Bluetooth via UART
  • Advanced Wi-Fi Features: OFDMA, Target Wake Time (TWT), 1024-QAM
  • Form Factors: Surface-mount module, Module with a 40-pin board-to-board connector, M.2 Type 2230-S3-E card
  • Antenna Interface: Features an MHF1 connector for external antennas.

Silex - EP-200Q

AMC Edge SoM enabled by Qualcomm QCS6490 for on-device AI

Key Features

  • Processing Power: Equipped with an octa-core Qualcomm Kryo 670 CPU, Adreno 642L GPU, and a 12-TOPS AI engine
  • AI Acceleration: Incorporates a Hexagon DSP with dual HVX, Hexagon Co-processor 2.0, and Hexagon Tensor Accelerator
  • Supports up to five MIPI CSI camera interfaces
  • Offers flexible, pre-validated Wi-Fi 7 connectivity options through integration with Silex's SX-PCEBE module
  • Provides a range of interfaces including PCIe, USB Type-C with DisplayPort, USB 2.0, MIPI CSI/DSI, eDP 1.4, SDIO, and various GPIOs (I2C, I2S, SPI, UART)
  • Features a 4K30fps encoder supporting H.265/H.264, suitable for high-definition video applications
  • Features an MHF1 connector for external antennas

Design and development shop

Silex Technology Products - Components, Samples, Development Kits and more

Our online shop is limited to the most popular and latest products. Our current portfolio contains more than 20,000 products. If you are looking for a special component, please contact us personally.
